How controlled force, multipoint contact, and consistent coil geometry support reliable electrical contact in compact implantable connectors

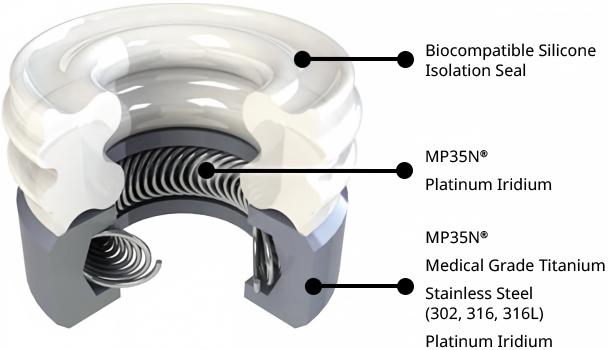

Electrical contacts in implantable neurostimulators have to work within an extremely limited space. The connection needs to remain mechanically stable while maintaining reliable electrical contact, even when small dimensional tolerances or alignment variations exist between mating
components.
Canted coil springs are well suited to this type of precision electrical contact because of the way their unique geometry responds under deflection.

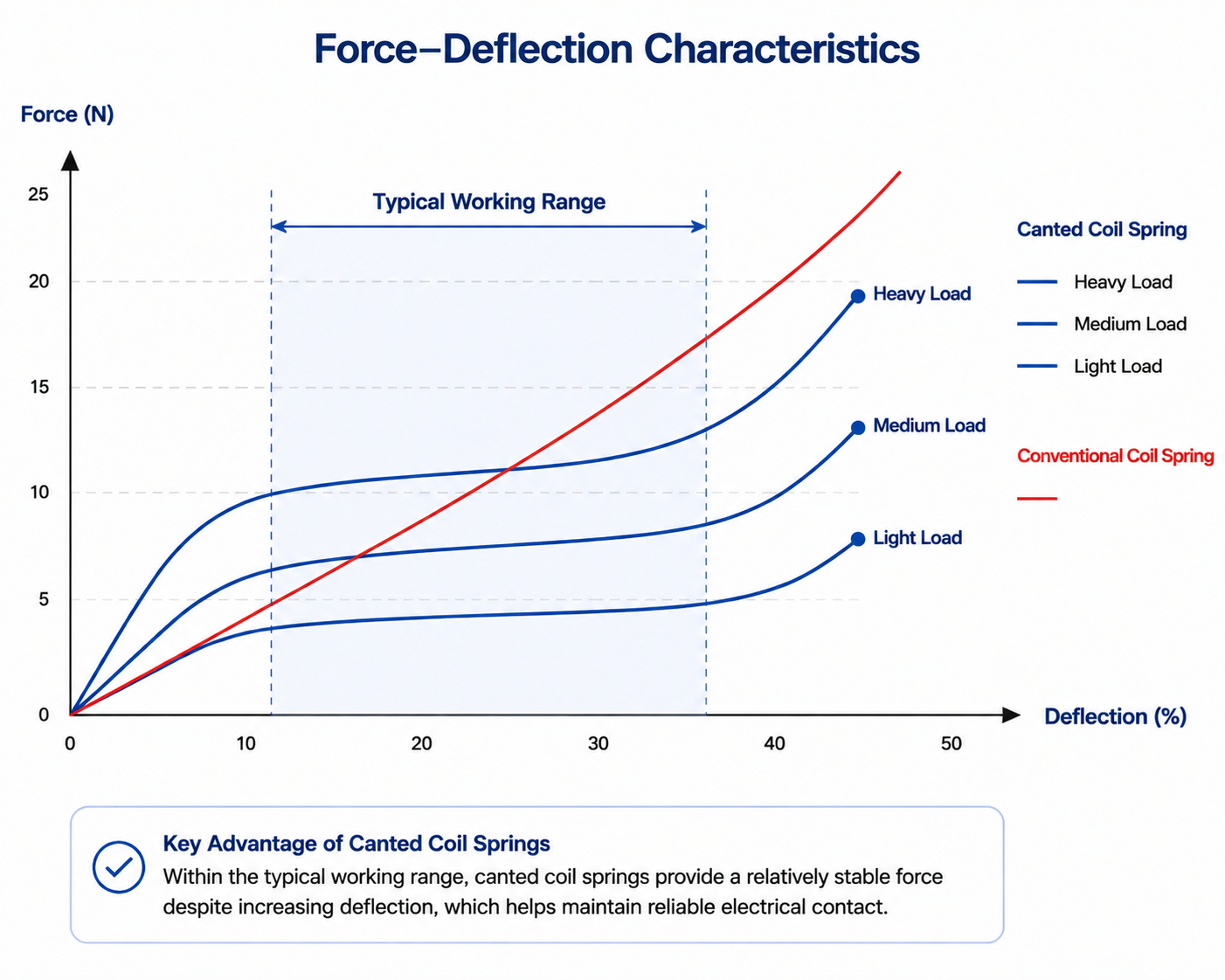

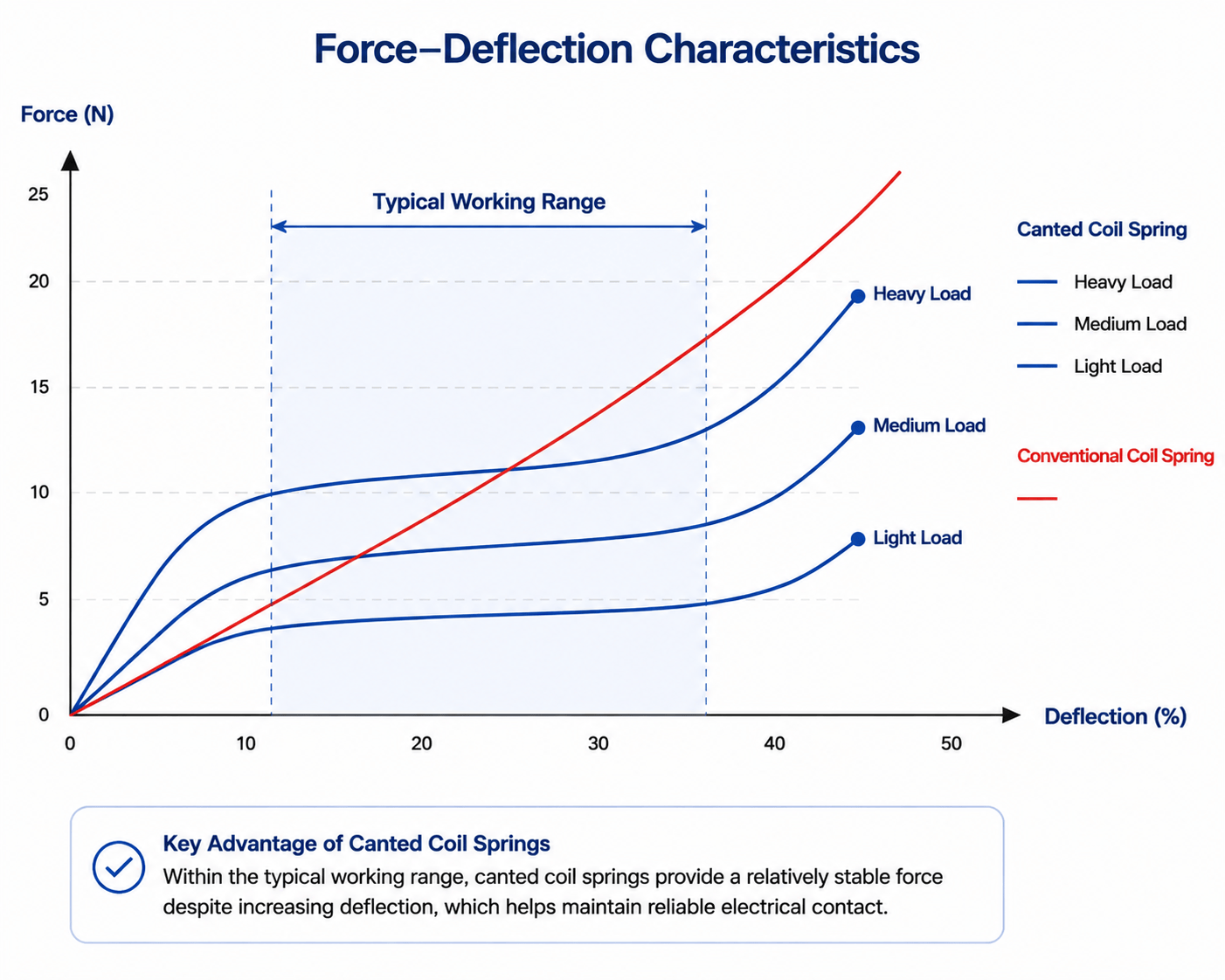

Unlike a conventional coil spring, each coil is inclined relative to the spring centerline. When the spring is radially compressed, these inclined coils deflect in a controlled manner and can provide a relatively stable working force over the intended deflection range.
At the same time, the individual coils create multiple elastic contact points around the mating component. Instead of relying on a single contact area, the spring distributes contact through a series of independent coils, helping accommodate small dimensional variations, surface irregularities, and misalignment.
This combination — controlled contact force, multipoint elastic contact, and compact size — is one of the reasons canted coil springs are used as electrical contact elements in compact implantable connectors.
But the same geometry that creates these advantages also creates the manufacturing challenge.
It is not particularly difficult to make a wire form that looks like a canted coil spring. The real challenge is maintaining the intended geometry consistently throughout the spring so that its mechanical behavior remains predictable.
This brings us from why the spring works to what actually matters when manufacturing it.
The Manufacturing Challenge: Consistent Canted-Coil Geometry

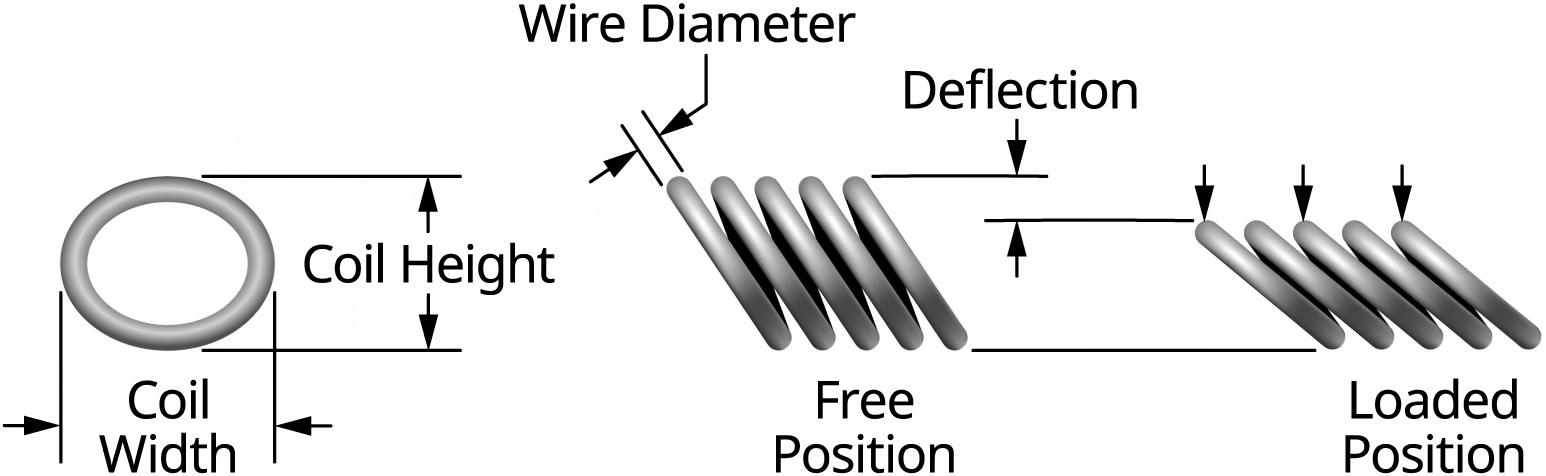

A canted coil spring may appear simple at first glance, but each individual coil contains several geometric characteristics that work together.Among the most important are:
· Coil Height
· Coil Width
· Coil Cant Angle / Cant Orientation
· Coil Spacing / Pitch
· Wire Diameter
在这里输入您的段落……
Coil height and coil width define the basic elliptical shape of the individual coil, while its angular position determines how that ellipse is oriented relative to the spring centerline. This geometry is then repeated continuously along the spring.
The difficulty is that these characteristics do not work independently.
A change in coil height can affect the available deflection. A change in cant angle or orientation changes how an individual coil responds under compression. Variation in spacing can change the relationship between neighboring coils.
Compared with a conventional coil spring, maintaining consistent geometry in a canted coil spring therefore involves more interdependent variables.
The manufacturing objective is not simply to hold each dimension somewhere within its tolerance range. It is to maintain the relationship between these dimensions as the spring is continuously formed.
That relationship is what allows successive coils to behave in a similar way when the spring enters its working condition.
When Small Geometric Variations Become Functional Variations
This distinction becomes clearer when we look at what happens if individual coils are not sufficiently consistent.
Imagine a finished ring whose overall inner diameter and outer diameter are both within specification. From an overall dimensional perspective, the spring may appear perfectly acceptable.
But the contact function is not created by the ring diameter alone. It is created by the individual canted coils around that ring.
If Coil Height, Coil Width, or Coil Cant Angle gradually varies along the spring, individual coils may not enter the same working condition when the spring is installed.
Some coils may engage earlier than others. Some may experience greater deflection, while others contribute less to the total contact load.
The result can be an uneven distribution of force across the contact points and a change in the overall force behavior of the spring.
For an electrical contact element, this is particularly relevant because one of the advantages of a canted coil spring is that many individual coils work together to create distributed elastic contact.
If those coils do not behave consistently, the advantage of multipoint contact can also become less consistent.
This leads to an important manufacturing distinction:
A canted coil spring can meet its overall ring dimensions while still having variation in the individual coil geometry that actually creates its functional behavior.
That is why producing the general shape is only the beginning. The real manufacturing capability lies in controlling that shape continuously.
Why Overall Dimensional Inspection Is Not Enough
Overall dimensional inspection remains essential.
Spring ID, Spring OD, Wire Diameter, and other specified dimensions determine whether the spring will fit correctly into the intended installation.
But dimensional fit does not tell the entire story.For a canted coil spring, manufacturing control also needs to consider the geometry of the individual coils and whether that geometry produces the intended mechanical response.
A useful way to look at the inspection logic is through three levels:
Overall dimensions confirm whether the spring fits the installation.
Individual coil geometry confirms whether the intended canted form has been reproduced consistently.
Functional force verification confirms whether the finished spring produces the expected mechanical behavior.
These three levels become increasingly important as the spring becomes smaller.When wire diameter and individual coil dimensions are already very small, what appears to be a minor absolute dimensional variation may represent a much larger proportion of the functional geometry.
For this reason, developing a stable manufacturing process cannot rely only on inspecting a few finished dimensions after production.
Critical coil geometry needs to be controlled during forming, and final functional verification should confirm that the manufacturing process has produced the intended spring behavior.The goal is not simply to produce one good sample.
It is to make that behavior repeatable from spring to spring and from batch to batch.
Ring Joining: The Next Manufacturing Challenge
For closed-ring canted coil springs, consistent coil forming is not the end of the manufacturing process. The two ends still need to be joined without creating an obvious geometric or mechanical weak point at the joint.
End Weldingis therefore another critical manufacturing step for this type of spring.
The joint is a small area, but its quality can affect the integrity of the entire ring. Because welding presents a different set of manufacturing challenges from continuous coil forming, it deserves a closer discussion of its own.
We will focus specifically on Canted Coil Spring Ring Joining and End Welding in another article.
Manufacturing for Repeatable Function
The value of a canted coil spring as a precision electrical contact begins with its geometry.
The inclined coils create the required mechanical response. Multiple individual coils provide distributed elastic contact. The compact ring structure allows these functions to be achieved within a very small installation space.
But these advantages depend on something less visible: manufacturing consistency.
For the finished spring to behave as intended, Coil Height, Coil Width, Cant Angle, orientation, and spacing must maintain the intended relationship throughout the spring.
This changes the question we should ask when evaluating a canted coil spring.
It is not only:
Does the spring match the drawing?
It is also:
Does the manufacturing process consistently reproduce the geometry and mechanical behavior that the application depends on?
For precision canted coil springs, dimensional conformity and functional consistency should ultimately support the same objective: making sure the spring performs as expected, not only in the first sample, but throughout production.
At SNM, our evaluation of canted coil spring projects therefore looks beyond nominal dimensions to the relationship between critical coil geometry, manufacturing consistency, functional force behavior, and the requirements of the intended application.
