In a flow battery application, a die compression spring may meet the specified load during initial inspection, but that alone does not guarantee stable preload throughout service.For springs used to maintain clamping force, reliability depends on more than whether the spring breaks. The more relevant question is:
Can the spring continue to provide the required force within its actual working range over time?
Spring rate, working height, long-term stress, manufacturing consistency and the operating environment can all influence this result.The good news is that many of these risks can be addressed at the spring engineering and manufacturing level.

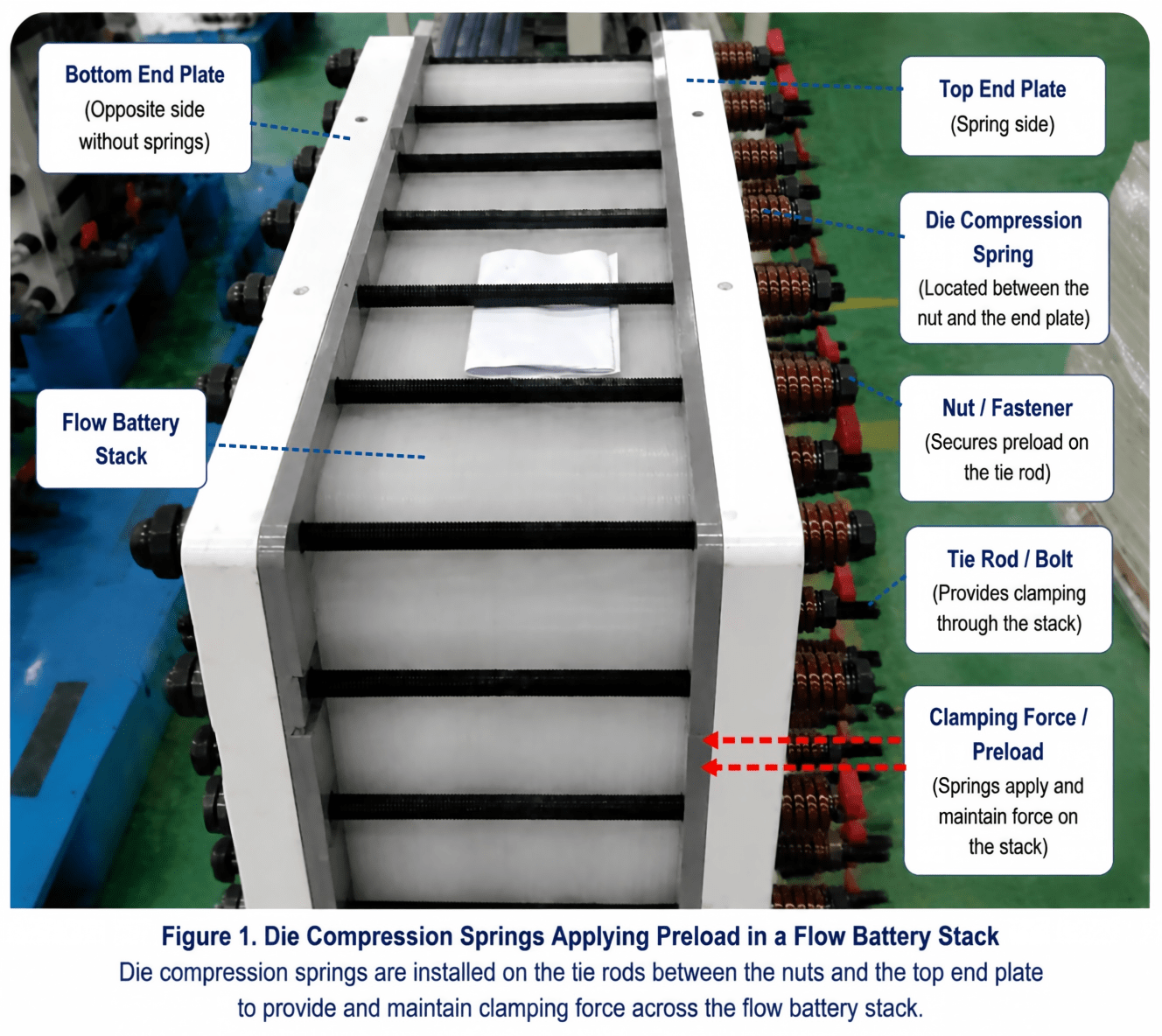

Original illustration: powder-coated alloy-steel die compression springs applying preload through the end plate.
How Do Spring Rate and Working Height Affect Preload?
A compression spring generates different loads at different working heights. Within its normal working range, the relationship can be approximately expressed as:
ΔF ≈ k × Δx
where k is spring rate and Δx is the change in spring deflection.
This means that when the spring's working height changes because of assembly tolerance, component movement, thermal effects or other dimensional variation, preload changes accordingly.
A higher spring rate generally produces a larger force change for the same dimensional movement. But simply reducing spring rate is not the solution, because preload, available space, working travel, solid height and stress must all be considered together.
Spring-Level Solution
Instead of evaluating only Load @ One Height, the spring should be reviewed across its expected working range.
Where optimization is required, parameters such as wire diameter, coil geometry, active coils, free length and working travel can be evaluated to achieve a more appropriate load-deflection characteristic within the available space.
For production verification, load can also be inspected at meaningful working heights rather than relying on a single load point.

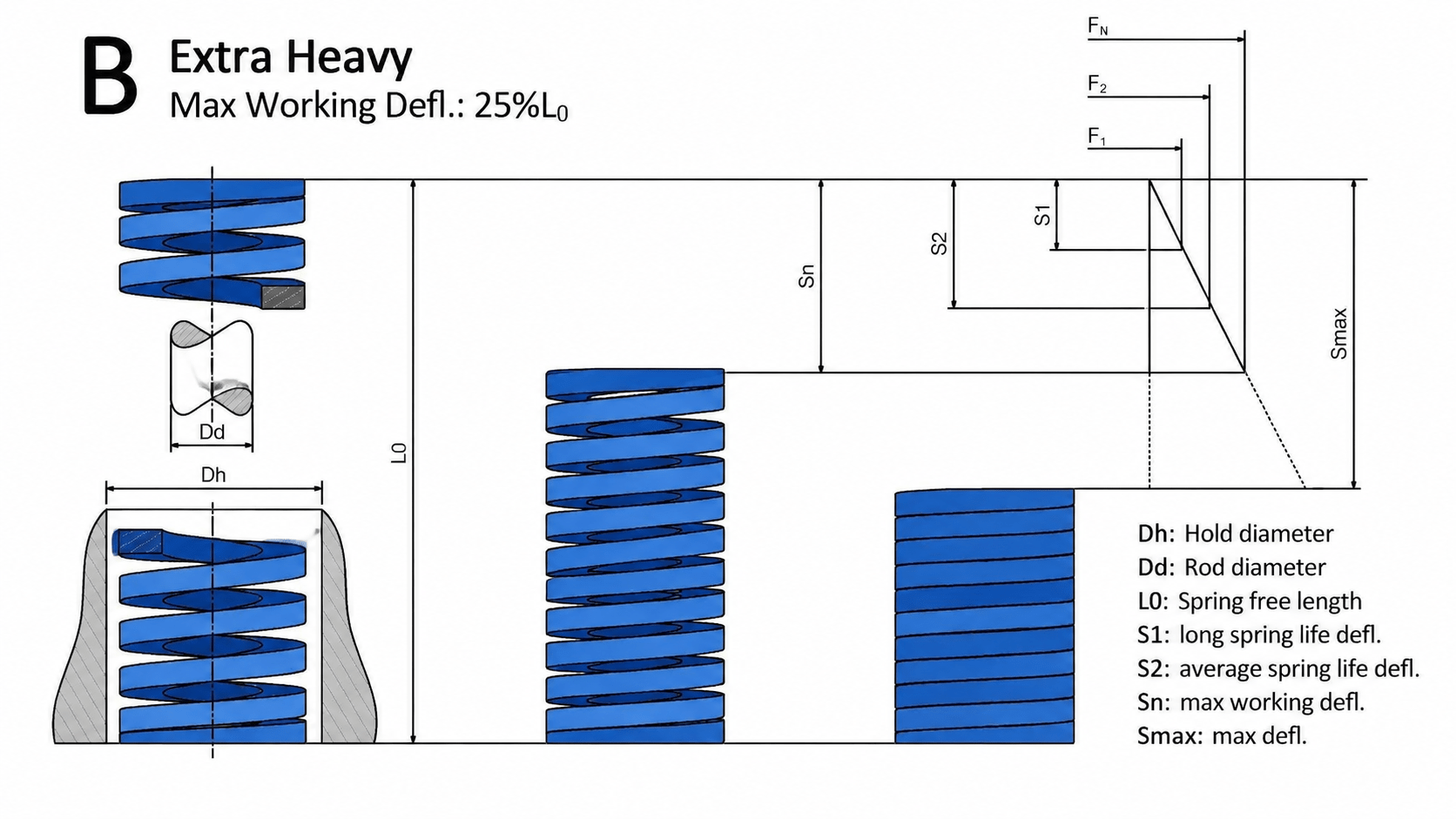

H₁ / F₁ → working-height change Δx → H₂ / F₂, illustrating how spring rate converts dimensional change into load change.
Why Is Presetting Important for Die Compression Springs?
A newly manufactured compression spring subjected to high compression can experience initial permanent set if part of the deformation is not fully recoverable.
For a preload application, this matters because a change in spring length can also change the load available at the installed position.
One manufacturing method used to improve stability is presetting, also known as setting or scragging.
During presetting, the spring is subjected to controlled compression before final inspection. This allows potential initial permanent deformation to be addressed during manufacturing rather than unexpectedly during service.
Spring-Level Solution
For the die compression spring used in this flow battery application, presetting is incorporated into the manufacturing process.
After presetting, the spring's dimensional and load characteristics can be verified again. This helps improve the stability of free length and load behavior during subsequent use.
Presetting does not replace evaluation of long-term operating conditions. Material, working stress, temperature and time under load still matter when long-term load retention is critical.
Why Does Long-Term Working Stress Matter?
A die compression spring used for preload may remain compressed for extended periods.
Even when the spring has been properly preset, its long-term load stability still depends on whether the material and stress level are appropriate for the actual operating condition.
The key parameters include:installed height · maximum working compression · stress level · material · temperature · service duration
Spring-Level Solution
The spring should be evaluated at its actual installed and maximum working positions, rather than only in the free state.
Where long-term load retention is particularly important, appropriate load-retention or relaxation validation can also be defined according to the application requirements.
The objective is to keep the spring within a working condition that supports stable mechanical performance over its intended service life.
Why Does Spring-to-Spring Consistency Matter?
When multiple die compression springs work together, total nominal load is not the only consideration.
Manufacturing variation can occur in:
load · spring rate · free length · squareness · coil geometry
As a result, nominally identical springs may not contribute exactly identical forces in the assembly.
Manufacturing Solution
Instead of tightening every dimensional tolerance unnecessarily, quality control should focus on the characteristics that actually influence spring function.
Depending on the application, these may include:
Load @ Specified Height
Free Length
Squareness
Spring Rate or Multi-Point Load
Spring-to-Spring Load Consistency
This functional approach helps control production consistency where it matters most.
What About Alloy Steel, Powder Coating and Electrolyte Exposure?
The die compression spring used in this flow battery application is manufactured from alloy steel with powder coating.
The coating provides a protective barrier between the steel substrate and the surrounding environment. However, coating quality and chemical compatibility are two different questions.
First, the coating itself needs consistent manufacturing:surface preparation → powder application → curing → coating integrity inspection
Second, the finished coating system needs to be suitable for the actual service environment.
For a flow battery application, this may depend on:
electrolyte chemistry · concentration · temperature · exposure mode · exposure duration
A spring isolated from the electrolyte faces a different environment from one exposed to leakage, condensation or direct chemical contact.
Spring-Level Solution
Surface protection should therefore be evaluated in two stages:
Is the coating manufactured consistently?
and:
Is the coating system appropriate for the actual chemical exposure?
Where the environment exceeds the capability of the existing surface protection, the coating system, surface treatment or spring material may need to be reconsidered.
Alloy-steel die spring with powder coating surrounded by electrolyte chemistry, concentration, temperature, exposure mode, exposure duration and coating integrity.
How Can a Flow Battery Die Compression Spring Be Optimized?
A die compression spring does not need to break before it becomes unsuitable for its application. For preload applications, the critical requirement is maintaining the required load within the intended working range.
Potential spring-level optimization can therefore focus on:
| Engineering Concern | Spring-Level Optimization |
|---|---|
| Preload sensitivity to working-height change | Optimize spring rate and working range |
| Initial permanent set | Apply controlled presetting / scragging |
| Long-term load stability | Review material, stress, working position and temperature |
| Multiple-spring variation | Control functional load and spring-to-spring consistency |
| Production variation | Verify load at meaningful working heights |
| Environmental protection | Control surface preparation, powder coating and coating integrity |
| Electrolyte exposure | Evaluate material/coating compatibility against actual exposure conditions |
For the alloy-steel, powder-coated die compression spring used in this flow battery application, presetting, functional load control, manufacturing consistency and surface protection are therefore not separate considerations. Together, they contribute to a more stable and predictable spring.
At SNM Hardware, we work within the customer's defined application requirements and evaluate where the spring itself can be optimized — from spring rate and working range to presetting, material, manufacturing consistency, functional inspection and surface protection.
The objective is not to redesign the flow battery stack, but to make the spring more reliable within the system it is required to serve.
