Weight Stack Top Plate Guide Rod Buffer Compression Spring
In our main article on counterbalance springs, we explored their roles across fitness equipment, industrial lifts, and household devices. Among these varied applications, one spring quietly ensures stability and smooth motion in weight stack systems: the top plate and guide rod buffer compression spring. Though often unnoticed, it plays a vital role in every lift and return, bridging mechanical precision and user experience.

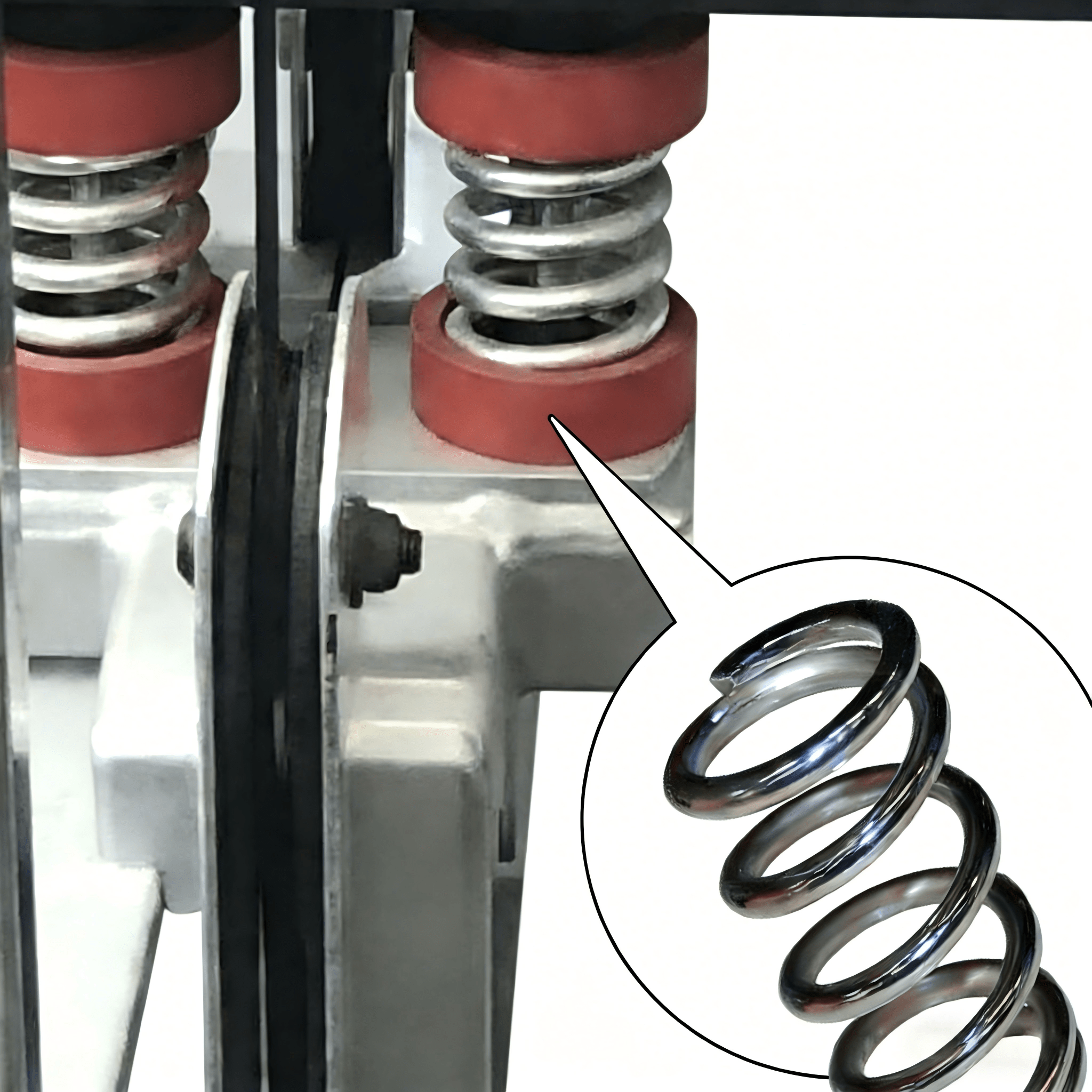

This is a metal compression spring installed beneath the top plate or along the guide rods of a weight stack system. It does not carry the full load directly; instead, it cushions the movement of stacked weights, maintains alignment, and smooths the path of each lift and return. Its design may seem simple, but it is carefully engineered to combine resilience with precision, quietly mediating the forces within the system.
The spring’s value becomes evident during repeated use. Each time the weight stack descends, it absorbs impact, prevents sudden shocks from propagating through the frame, and stabilizes the plates. Noise is minimized, and wear on the guide rods and top plate is reduced. For users, the lift feels smooth and controlled, while for the machine, longevity is enhanced. Though small and hidden, the spring’s role is indispensable.
Application Example: Guide Rod & Top Plate Buffer Spring
Consider a mid-sized strength training machine used in gyms or rehabilitation centers. The weight stack moves along guide rods as the user lifts, and at the top and along the rods, the buffer compression spring gently cushions each return. Without this spring, the plates would collide, motion would feel abrupt, and noise would increase. Its subtle resistance ensures the stack returns smoothly, maintaining alignment while protecting the guide rods and top plate from excessive wear. This is where engineering meets user experience: the spring may be hidden, but its influence is tangible in every lift.
Material Selection: Optimizing Performance and Cost
Spring’s long-term performance depends first on material selection. Currently, 65Mn high-carbon spring steel is widely used for weight stack springs in domestic fitness equipment. Its adoption rate dominates the market. This material offers excellent elasticity and plasticity. It has a mature supply chain. It also provides outstanding cost-effectiveness. Thus, it has become the standard choice from home equipment to mainstream commercial machines.
In practical applications, properly heat-treated 65Mn spring steel performs well. Its tensile strength can exceed 1500 MPa. It withstands over 100,000 compression cycles. During this process, it shows no significant permanent deformation or loss of elasticity. For export products or commercial equipment with higher requirements, SUP7 spring steel is often used. Its quality control is stricter. Its chemical composition is similar to 65Mn. But it meets higher standards in purity and uniformity. It can be considered a premium upgrade to 65Mn.
Manufacturing Process: Precision Determines Operational Smoothness
The core process of spring forming is cold coiling. This is done using high-precision CNC spring coiling machines. Pre-treated spring steel wire is coiled into the designed shape and number of turns. Cold coiling preserves the continuity of the material’s internal fiber structure. This results in better surface quality. It also ensures dimensional consistency.
Formed springs must undergo heat treatment. This involves quenching and medium-temperature tempering. The goal is to achieve target mechanical properties. Post-treatment hardness is typically controlled within HRC 44–50 range. This hardness range offers dual advantages. It ensures sufficient elasticity. It also provides necessary toughness. This prevents brittle fracture during long-term use. Precise heat treatment is crucial. It forms the basis for spring’s long-term performance stability.
Surface Treatment: The Key to Smooth and Quiet Operation
Surface treatment is critical for buffer springs. It provides corrosion protection. More importantly, it’s core technology for low-friction, quiet operation. Currently, phosphating is the absolute mainstream process. It has become standardized. Market adoption rate exceeds 95%.
Phosphating forms a special layer on spring surface. This is a micro-porous phosphate crystalline layer. This layer serves three main functions:
- Oil retention and friction reduction. The micro-porous structure effectively absorbs lubricating oil. It maintains lubrication effect. It forms a continuous oil film between spring and guide rod. This significantly reduces friction coefficient. Reduction can reach 30%-50%.
- Corrosion protection. It provides basic rust resistance. It meets requirements of indoor fitness environments.
- Appearance variety. Through different phosphating formulas and post-treatment processes. It can appear dark gray, black, or bluish-white. The bluish-white finish is often mistaken for plating.
For applications with extreme corrosion resistance requirements, Dacromet process is used. This includes coastal gyms. Also includes high-end commercial equipment or medical rehabilitation devices. This coating has following characteristics:
– Excellent corrosion resistance. Can withstand 500-1000 hours in salt spray tests. This is 5-10 times that of standard phosphating.
– No hydrogen embrittlement risk. The process doesn’t involve electrolysis. It completely eliminates threat of hydrogen embrittlement to spring fatigue life.
– Good friction characteristics. The coating itself offers some lubricity. It presents a uniform matte silver-gray appearance.
A common misunderstanding needs clarification. Traditional decorative electroplating is rarely used. This includes zinc plating, nickel plating, etc. There are four main reasons:
Electroplated coatings are dense and smooth. This prevents oil retention and friction reduction.
They carry hydrogen embrittlement risk. This reduces fatigue life.
Cost is higher than phosphating.
Plating easily peels under friction.
Therefore, springs appearing “plated” on market need reevaluation. Most are colored phosphated products. Or Dacromet coated.
Quality Control: The Final Safeguard for Long-Term Reliability
Stringent quality control is essential. It’s key to ensuring stable spring performance. It’s also necessary for guaranteed lifespan. The industry has established standard quality control processes. Mainly includes following three aspects:
- Dimensional and visual inspection. Using professional tools for checking. Including calipers, projectors, etc. Checking spring’s key dimensions. Including outer diameter, free height, total coil count, etc. Also evaluating surface treatment quality.
- Load-displacement testing. Conducted using spring testers. Measuring load values at specified compression heights. Verifying if stiffness meets design requirements. Ensuring load-deflection curves remain consistent.
Fatigue life testing. This is sampling test procedure. Conducting high-frequency cyclic compression tests. Simulating real-world usage conditions. Standard tests have clear requirements. Springs must be tested at maximum working compression stroke. Typically requires 100,000 cycles. After testing, two indicators are evaluated: Permanent deformation should be less than 3% of free height. Force decay should not exceed 5%.
The top plate and guide rod weight stack compression spring is relatively simple. But its design and manufacturing represent a balance. This is precise balance between performance, cost, and reliability. Modern practices have established mature patterns. Using 65Mn/SUP7 spring steel as standard material. Combining cold coiling and precise heat treatment as core processes. Universally applying phosphating for friction reduction and rust prevention. Finally, implementing rigorous load and fatigue testing. Through such systematic approach, modern fitness equipment delivers quality experience. This experience is both robust and stable. Also smooth and comfortable. These practices have become standardized. They support fitness equipment industry development. Driving industry toward higher quality. Promoting realization of longer-lasting products.
